Carbon Specifications
Absolute Maximum Ratings
| Parameter | Rating |
|---|---|
| Input Power Voltage | -0.2 V to 20 V |
| Input Power Current | < 3 A |
| GPIO Pin Voltage | -0.3 V to 2.1 V |
| GPIO Pin Current | -12 mA to 12 mA |
| RX1,RX2,RX3,RX4 Port Input Power (Peak) | < 2.5 dBm |
| RF Ports DC Voltage (If Externally Applied) | -50 V to 50 V |
| Operating Temperature Range | -40° C to +85° C |
DC Characteristics
| Parameter | Min | Typ | Max | Units |
|---|---|---|---|---|
| Input Power, USB-C or Battery | 8.5 | - | 20 | V |
| 0.3 | - | 1.5 | A | |
| 5.6 | - | 9 | W | |
| GPIO Input Low, VIL | 0 | 0 | 0.45 | V |
| GPIO Input High, VIH | 1.27 | 1.8 | 1.95 | V |
| GPIO Output Low, VOL | 0 | 0 | 0.45 | V |
| GPIO Output High, VOH | 1.35 | 1.8 | 1.95 | V |
Battery Characteristics
| Parameter | Value |
|---|---|
| Number of cells in pack | 6 |
| Cell type | CR123A (Li/MnO2) |
| Continuous cell discharge current rating | > 1.25 A |
| Recommended cells | Energizer |
| Carbon runtime on battery (depending on FPGA and CPU load) | 2.5 to 4.5 hrs |
Sampling Characteristics
| Parameter | Min | Typ | Max | Units |
|---|---|---|---|---|
| RX ADC Resolution | 12 | bits | ||
| ADC Sample Rate | 61.44 | Msps | ||
| TX DAC Resolution | 12 | bits | ||
| DAC Sample Rate | 61.44 | Msps | ||
| TX/RX Channel Bandwidth | 0.2 | 56 | MHz |
RF Characteristics
| Parameter | Min | Typ | Max | Units | Notes |
|---|---|---|---|---|---|
| Rx Frequency Range | 70 | 6000 | MHz | ||
| Rx Second-Order Input Intercept Point (IIP2) | 42 | - | 85 | dBm | Varies with gain and Frequency |
| Rx Third-Order Input Intercept Point (IIP3) | -18 | - | 16 | dBm | Varies with gain and Frequency |
| Rx Noise Figure | 2 (800 MHz) | - | 5.2 (6 GHz) | dB | Varies depending on frequency |
| Rx LO Leakage | -128 | - | -92 | dBm | Varies depending on frequency |
| Rx Phase Error | 0.2 | degrees | |||
| Tx Frequency Range | 46.875 | 6000 | MHz | ||
| TX1 & TX2 RF Output Power | -5 | 2 | 9 | dBm | |
| Modulation Accuracy (EVM) | -40 | dB | |||
| Tx Third-Order Input Intercept Point (IIP3) | 0 | - | 28 | dBm | Varies with gain and Frequency |
| Tx Carrier Leakage | -50 | dBc | |||
| Frequency Tolerance | -2 | - | +2 | ppm | |
| Frequency Stability | -1 | - | +1 | ppm |
Physical Characteristics
| Parameter | Typ | Units | Notes |
|---|---|---|---|
| Length | 202 | mm | Including RF connectors |
| 7.95 | in | ||
| 192 | mm | Not including RF connectors | |
| 7.56 | in | ||
| Width | 90 | mm | |
| 3.54 | in | ||
| Height | 63.3 | mm | |
| 2.49 | in | ||
| Weight | ~700 | g | |
| ~1.54 | lbs | ||
| Kit Shipping Weight | ~1.7 | kg | Including case and accessories |
| ~3.75 | lbs |

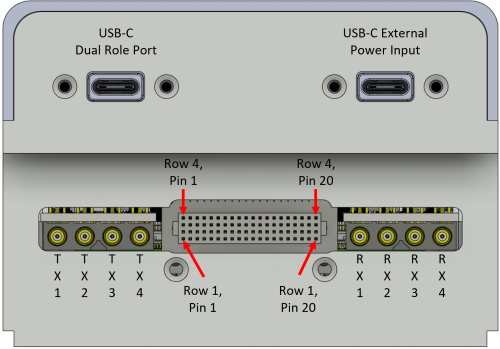

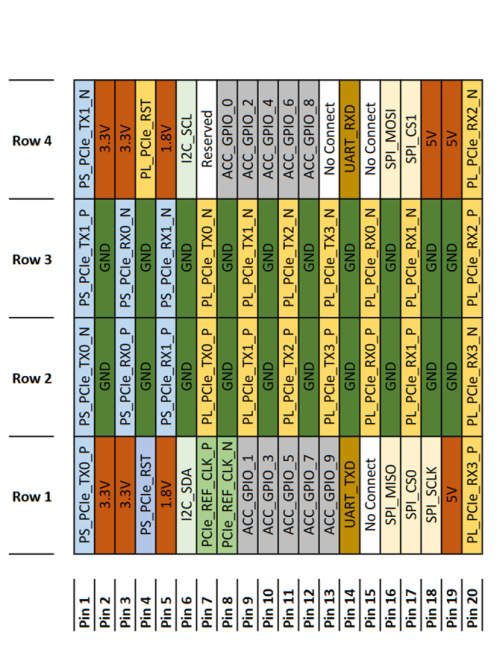

Carbon Dock Interface Pinout
All I/O signals are 1.8V logic and all differential pair signals are LVDS.
